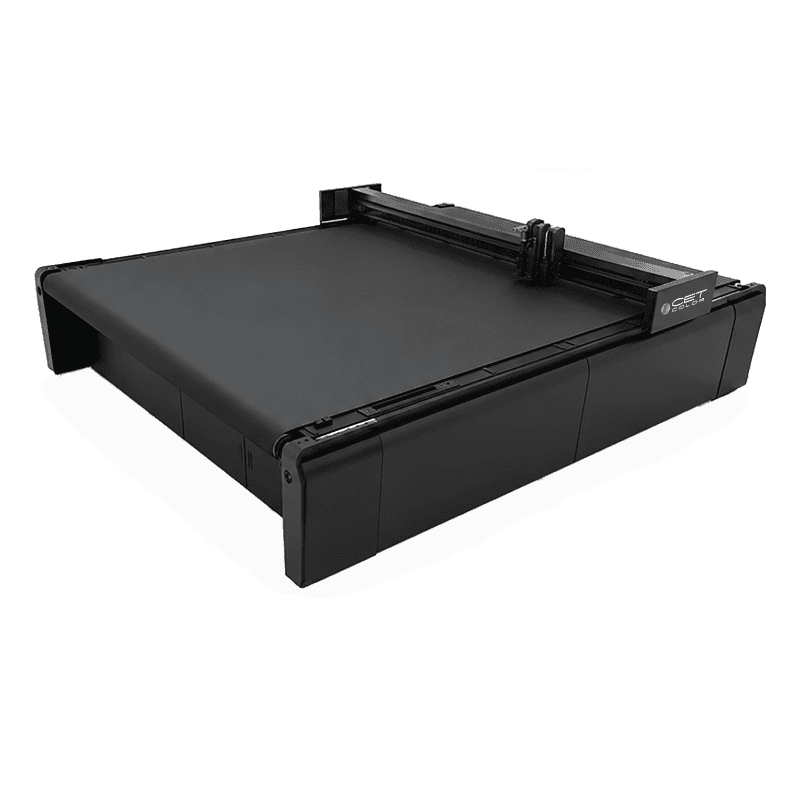

CET Color Axis Large-Format Cutter

The Axis Elite Series represents the next evolution in digital cutting performance. Built with advanced Magnetic Drive Technology, Axis replaces traditional belt and rack-and-pinion systems with a high-precision “Zero Contact” motion platform engineered for faster acceleration, smoother movement, and exceptional cutting accuracy. The result is a more responsive, production-ready system designed to maximize throughput while minimizing mechanical wear and long-term maintenance. Combined with a heavy-duty carbon steel frame for superior stability and durability, the Axis Elite Series is built to perform in demanding production environments day after day.

Advanced Features Include:

• Maximum traverse speeds up to 2 m/s
• Cutting thickness up to 50 mm (1.97″)
• Optical auto tool calibration
• Multiple vacuum zones for improved material hold-down
• Automatic router bit tool changing options
• Continuous conveyor feeding systems
• Precision CCD camera registration
• Integrated 7-position router tool changer
• Heavy-duty carbon steel frame construction

The Axis Elite Series can process:

• Acrylic
• PVC
• Vinyl
• Foam board
• Corrugated packaging
• Textiles
• KT board
• Rigid and flexible substrates

With capabilities including through-cutting, kiss-cutting, creasing, routing, V-cutting, scoring, engraving, and marking, the Axis Elite provides a complete finishing workflow in one platform.
